- 1 pair with all mounting parts
- Alway use both recovery points to attach recovery rope or strap to distribute the load. Make a V and never a closed triangle which would pull the parts towards each other

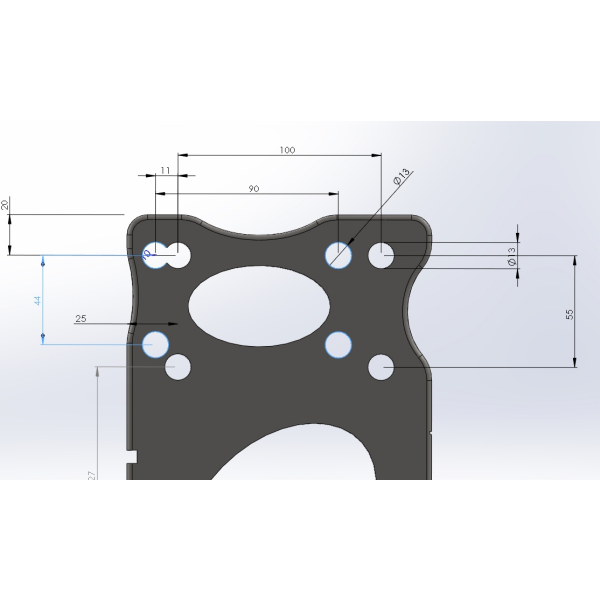

- both bore patterns (3.5t and 5t chassis), 90x44mm und 100x55mm
- M12 10.9 screws, zinc plated + caps for nuts and screw heads

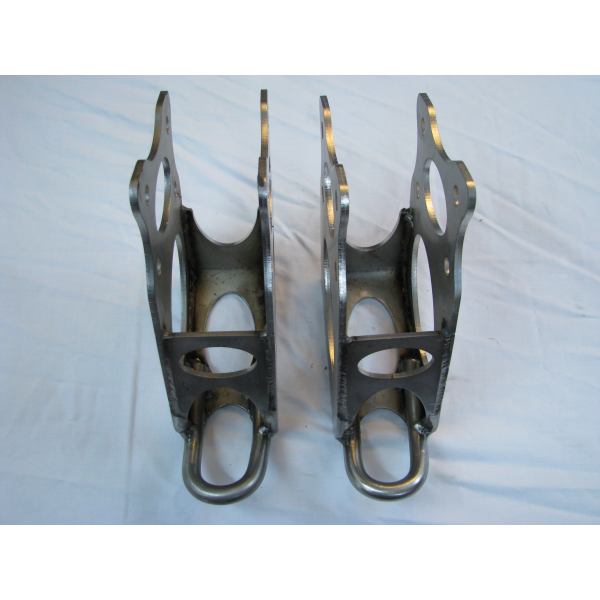

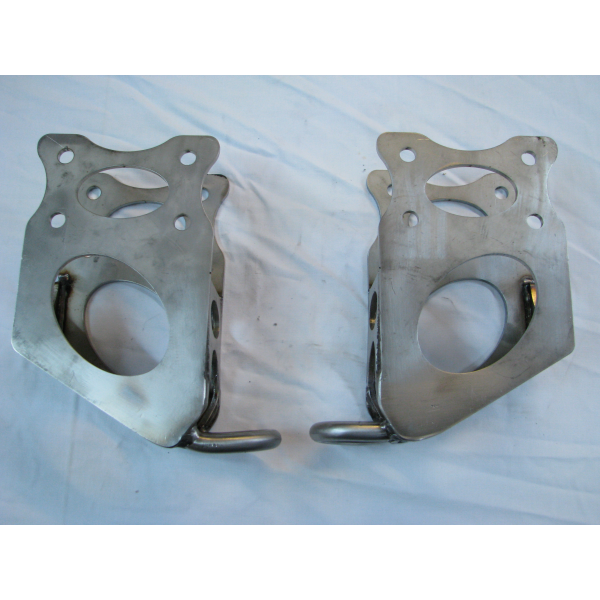

- welded box design for maximum strength, bottom angle for easy sliding across obstacles or ground (no anchor effect)
- 5mm material thickness + 16mm shackle
- hot zinc dipped for best corrosion protection
- only for mid length wheelbase or longer
- not combinable with towing bar
- is space to the top is not sufficient, it's possible to grind off up to 3mm material. Don't forget rust prevention, also for the screws in the bushes.
- Torque for screws: 20Nm is sufficient.
| Item information | Value |
|---|---|
| Manufacturer: | Relleumdesign |
| SKU: | 1173 |
| Item weight: | 7,50 kg |
Manufacturer information:
Relleumdesign
