- Solarmount without the 4 base plates under the rubber joints

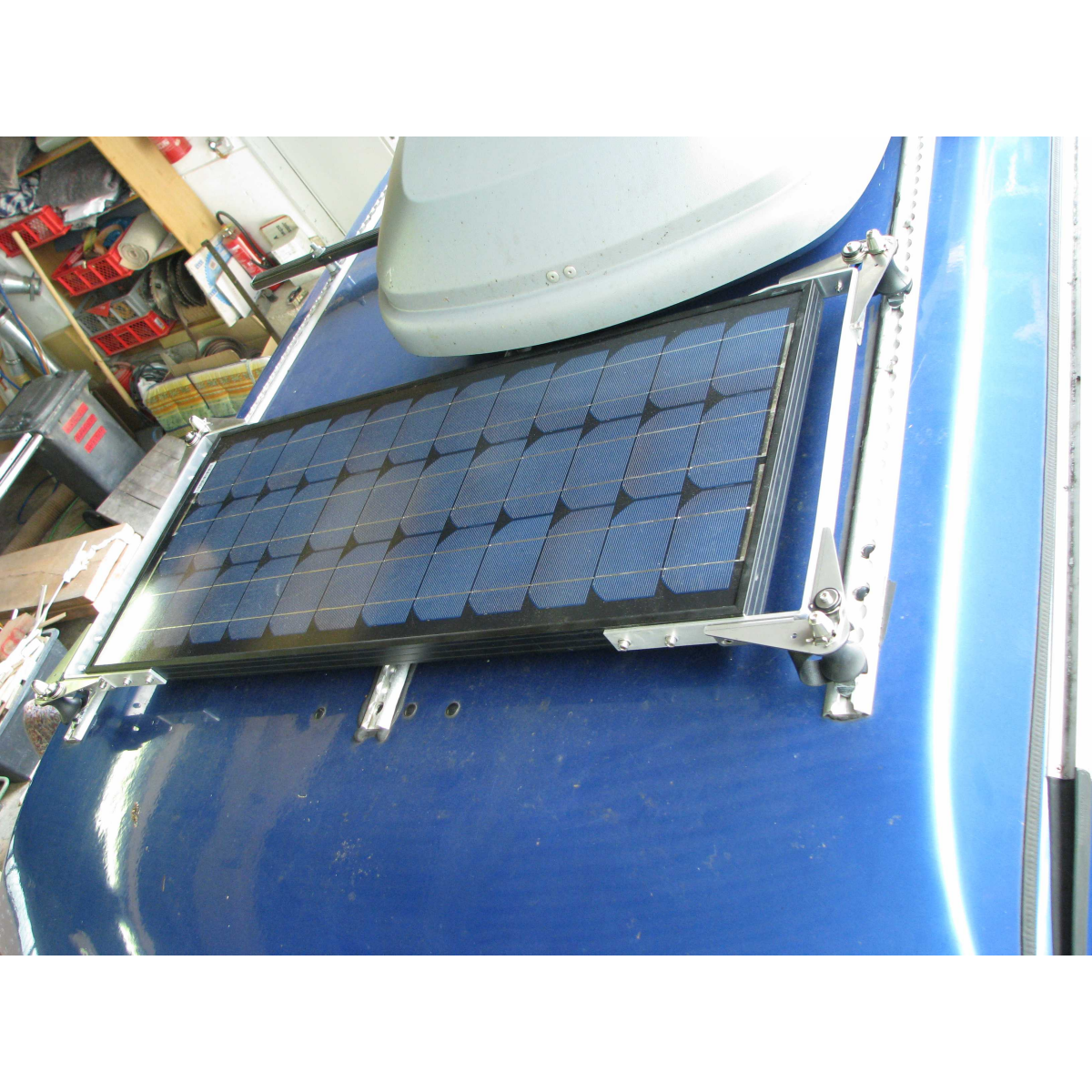

- for mounting directly on rails or roof rack, rubbers do have an M8 thread on the bottom side
- be aware the the middle foot need to be mounted elevated so the locking strut can slip in properly

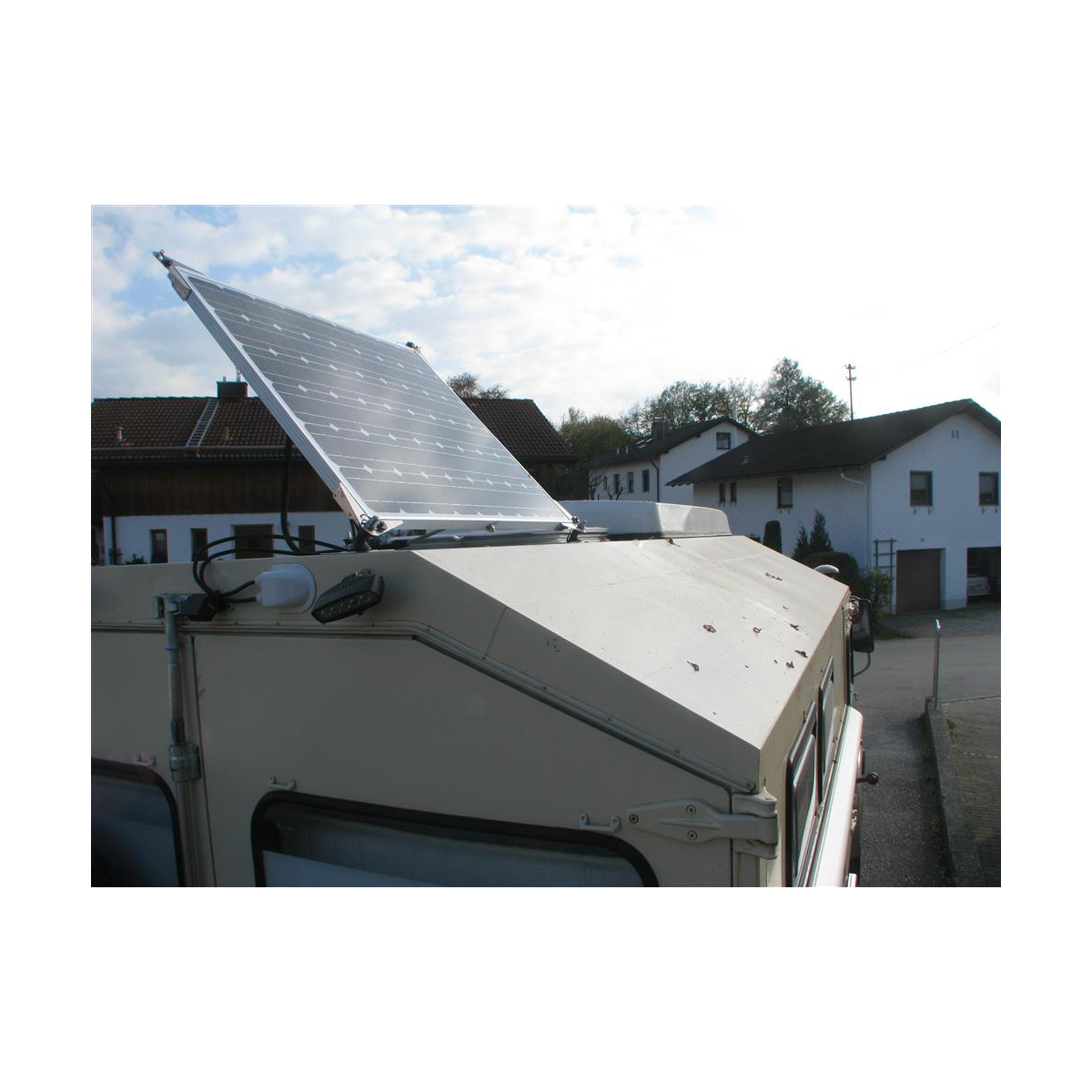

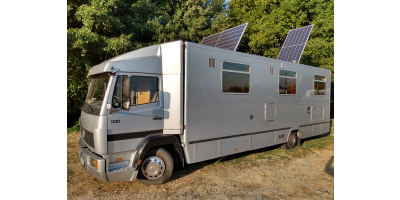

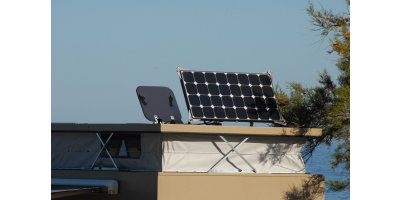

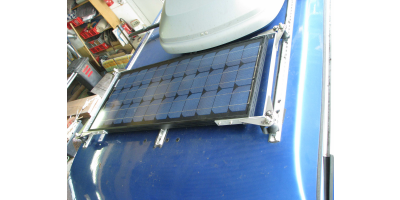

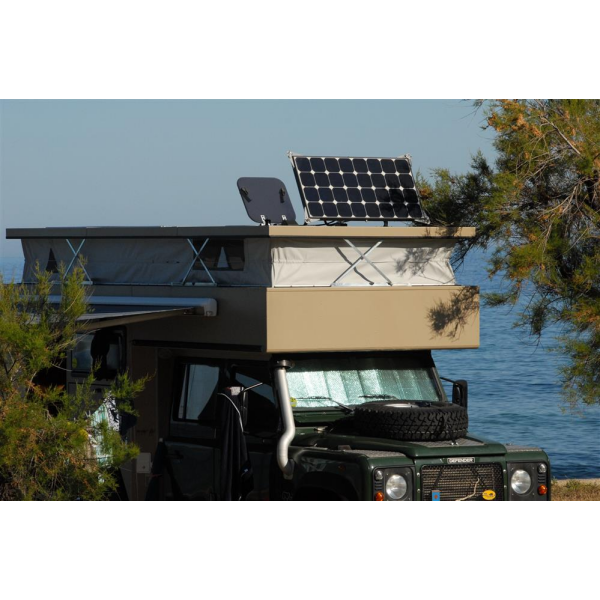

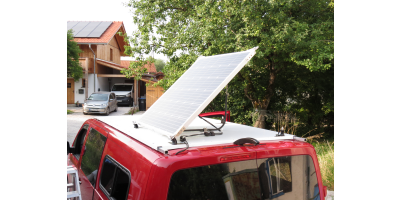

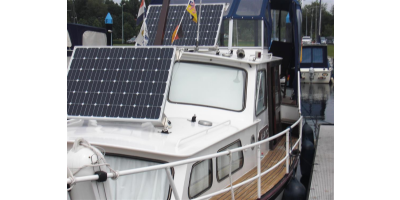

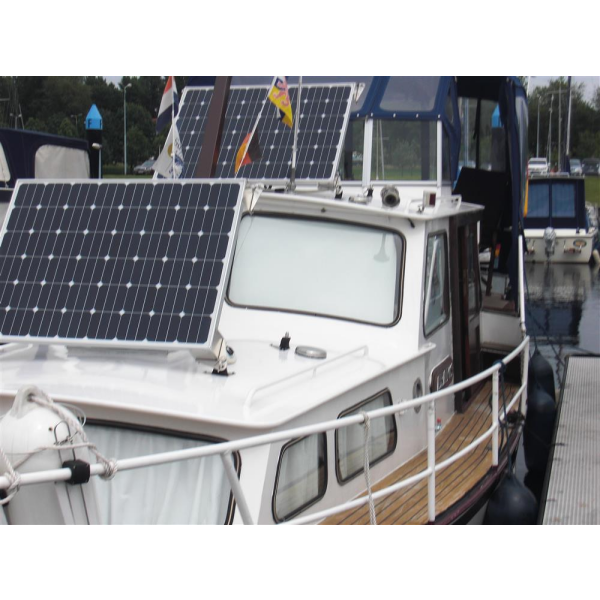

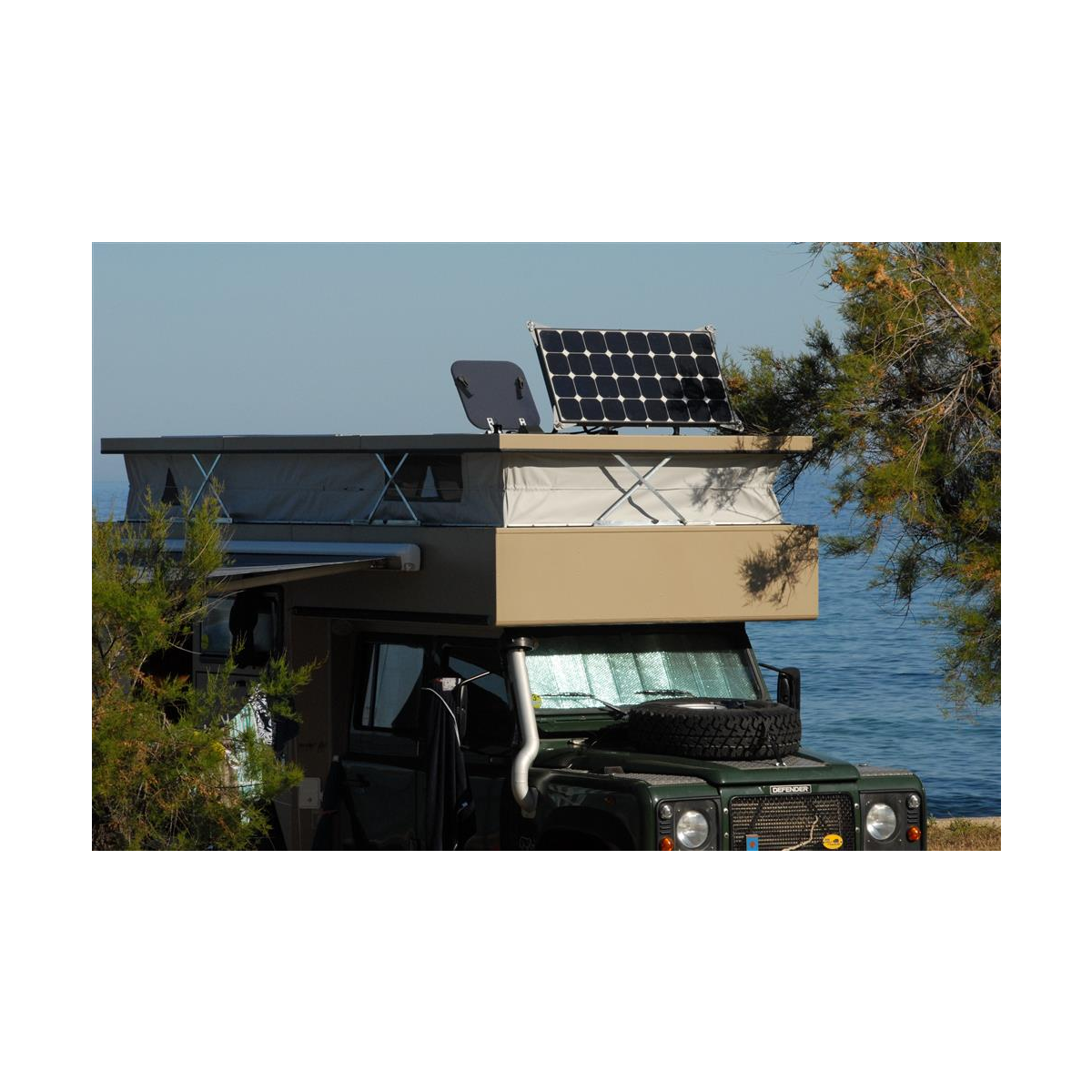

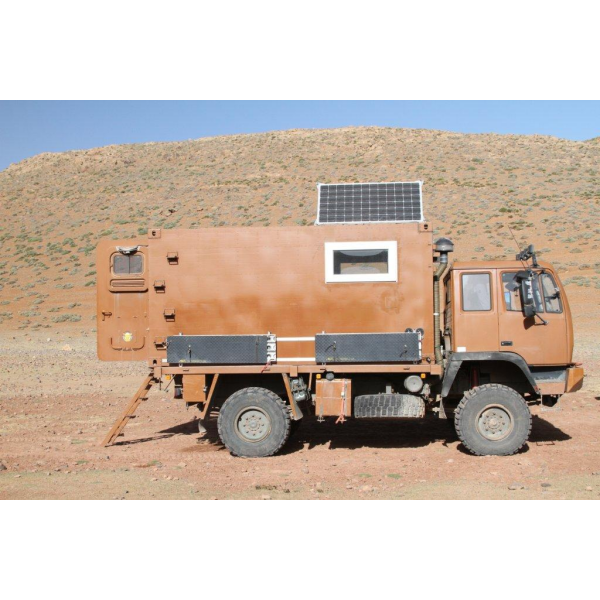

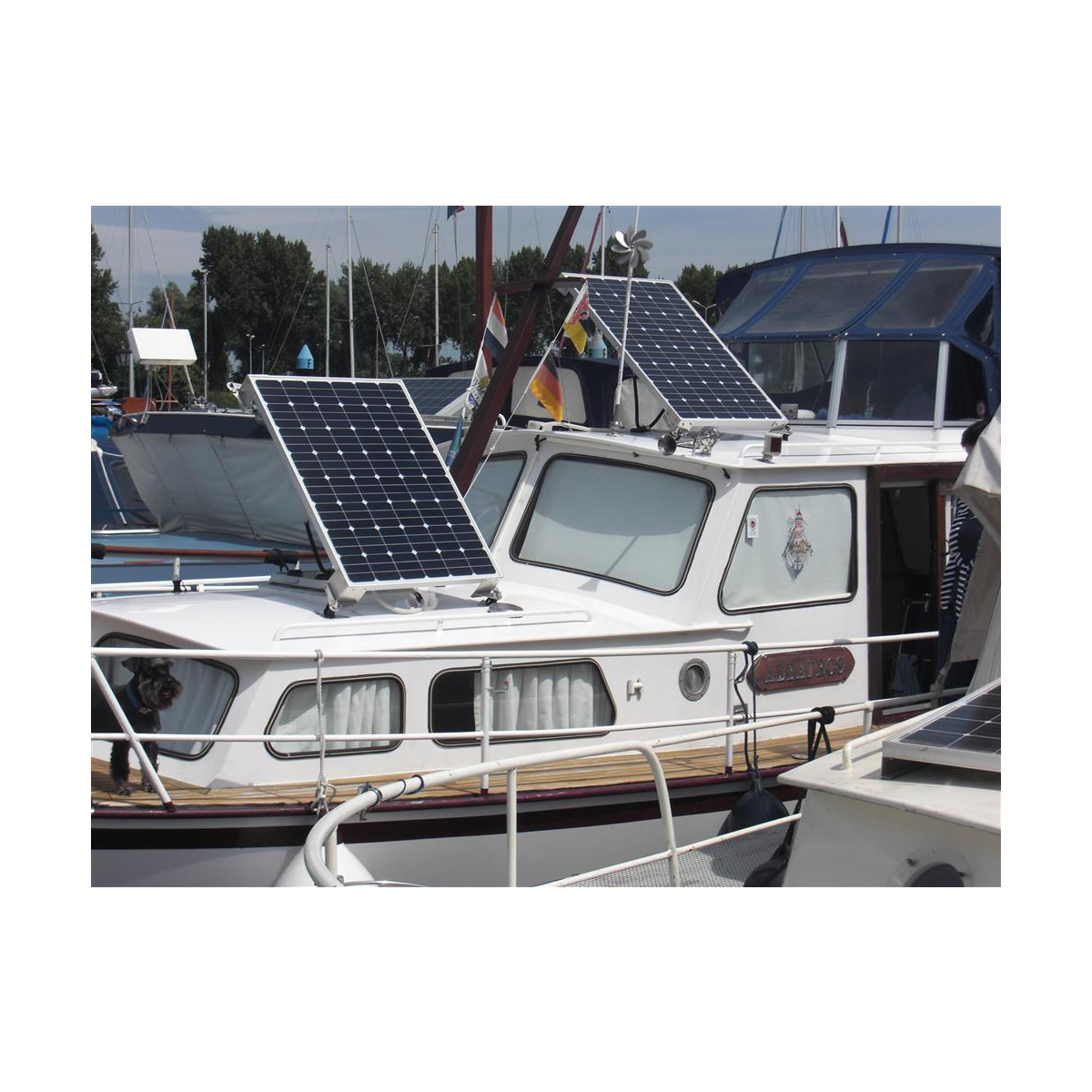

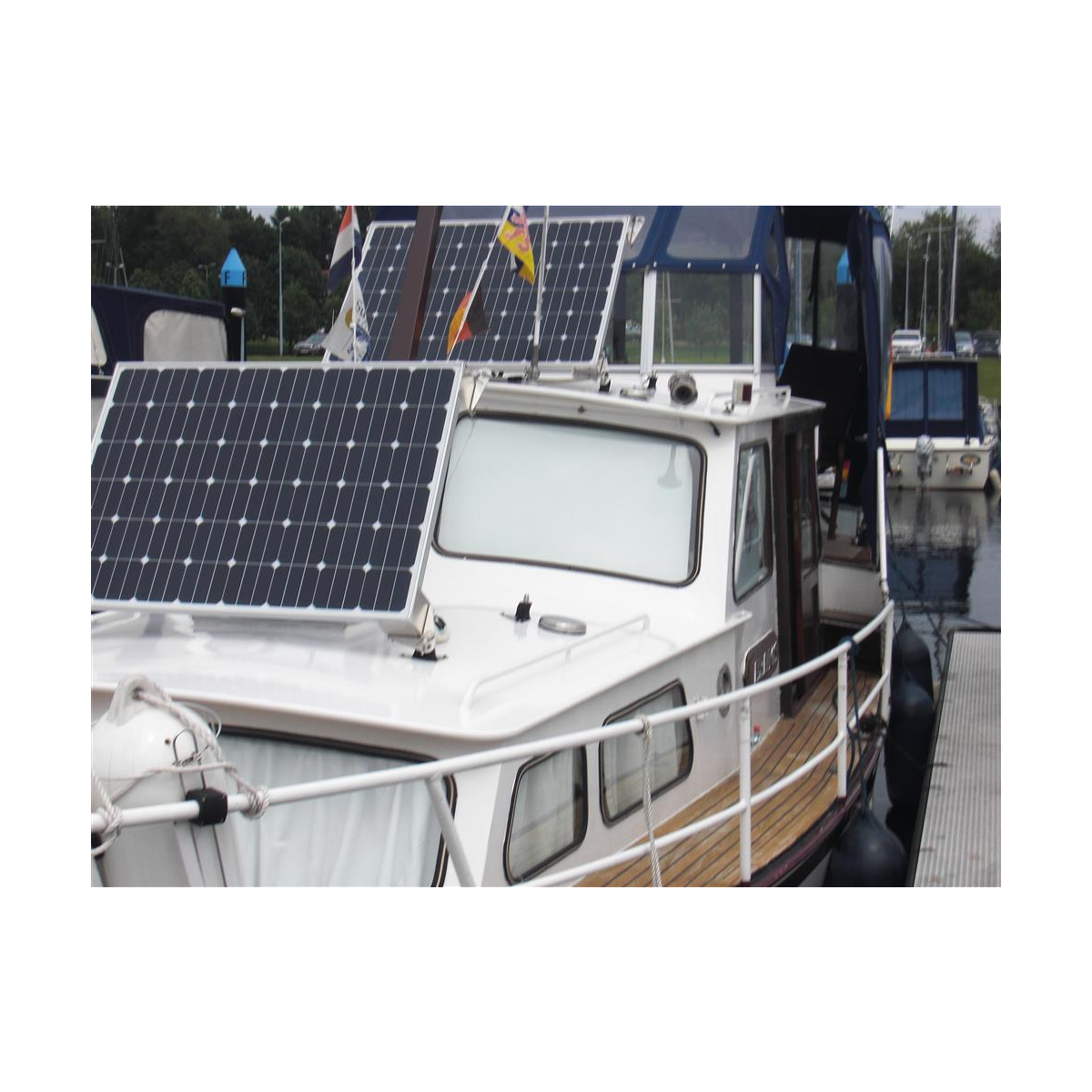

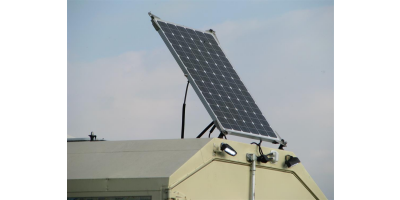

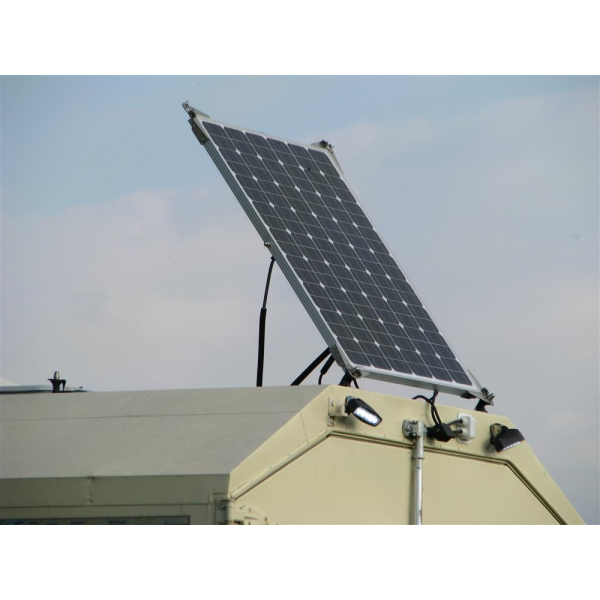

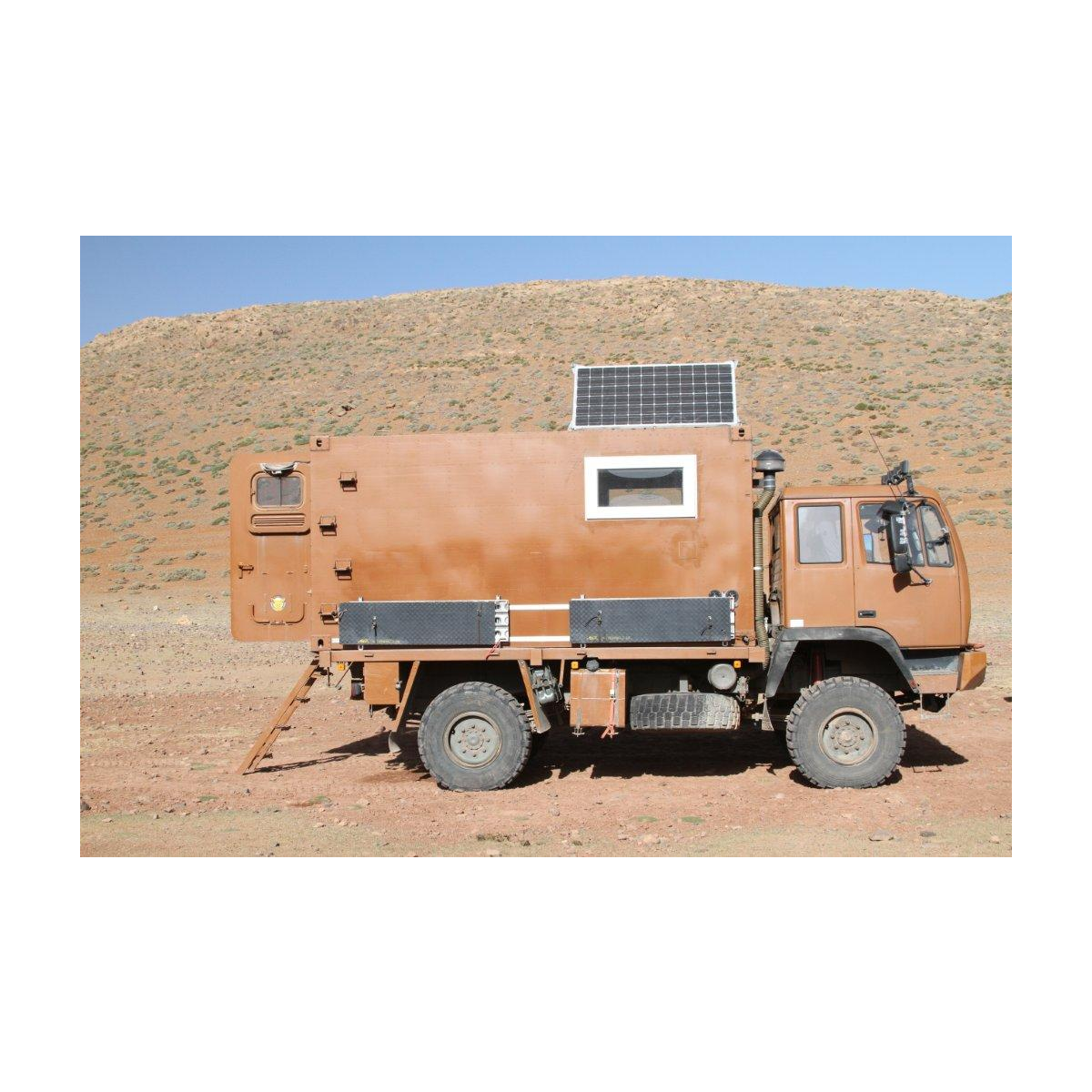

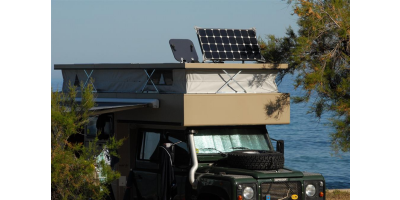

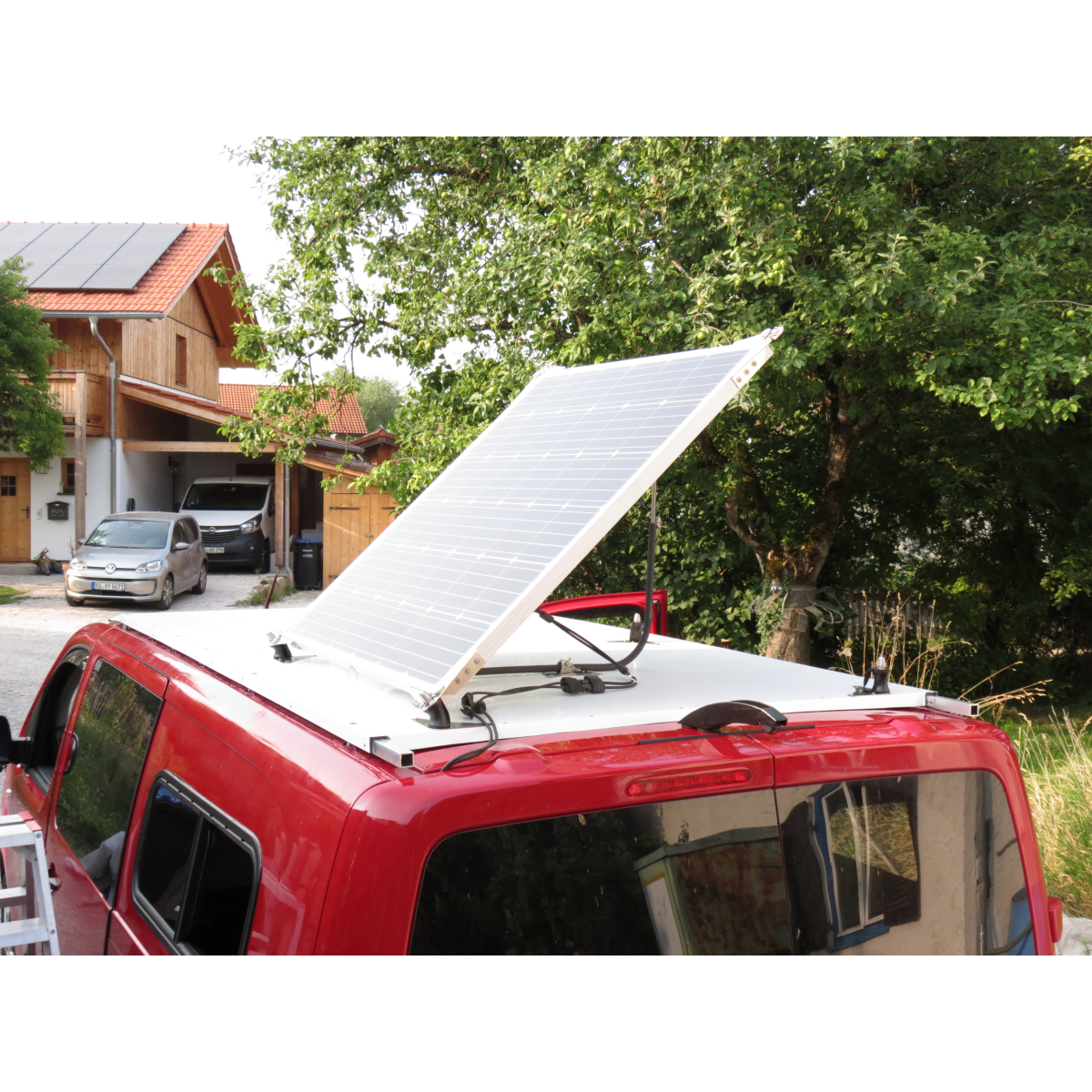

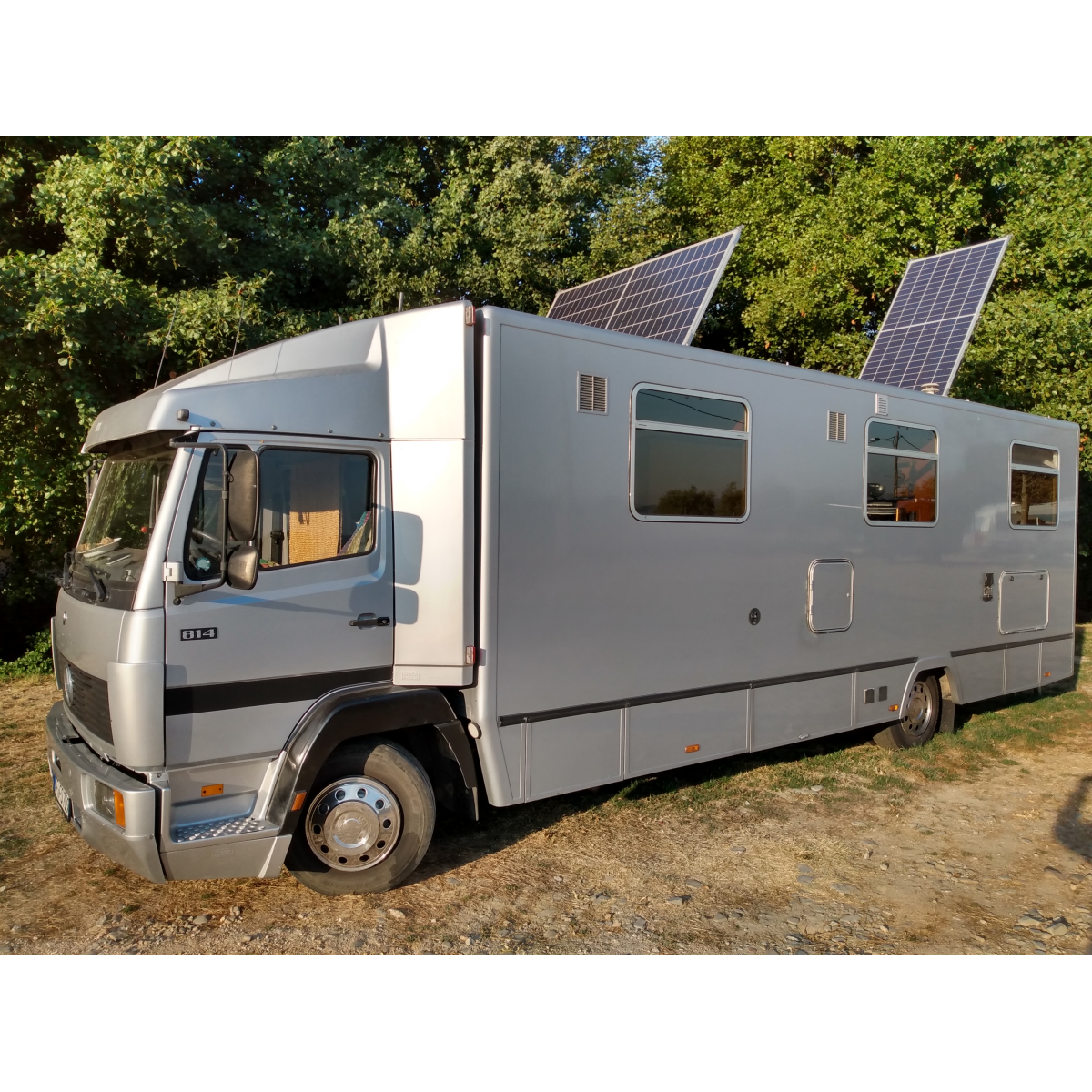

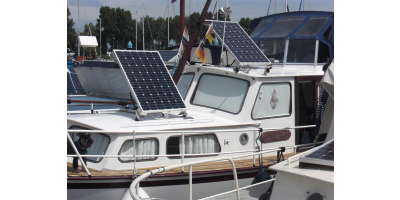

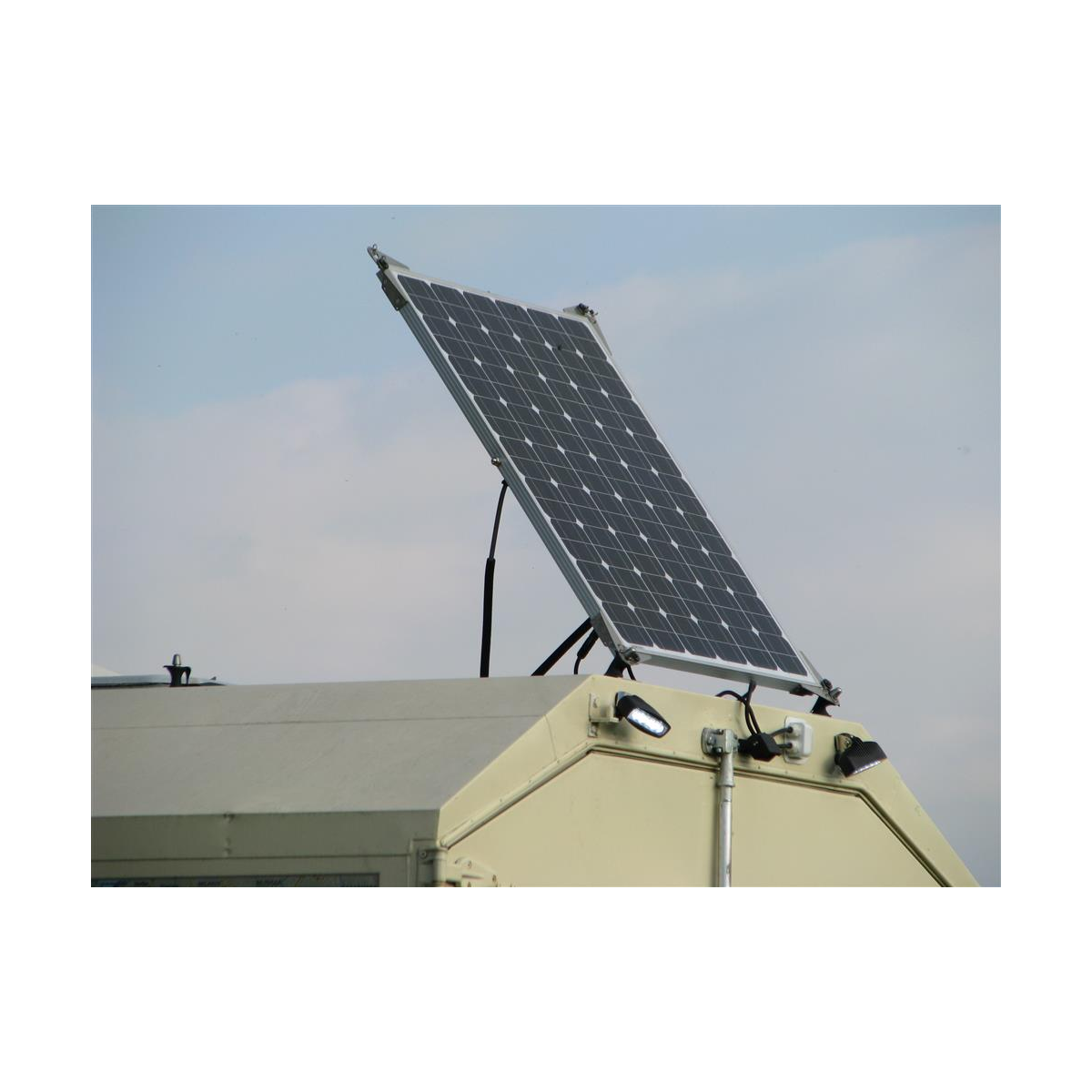

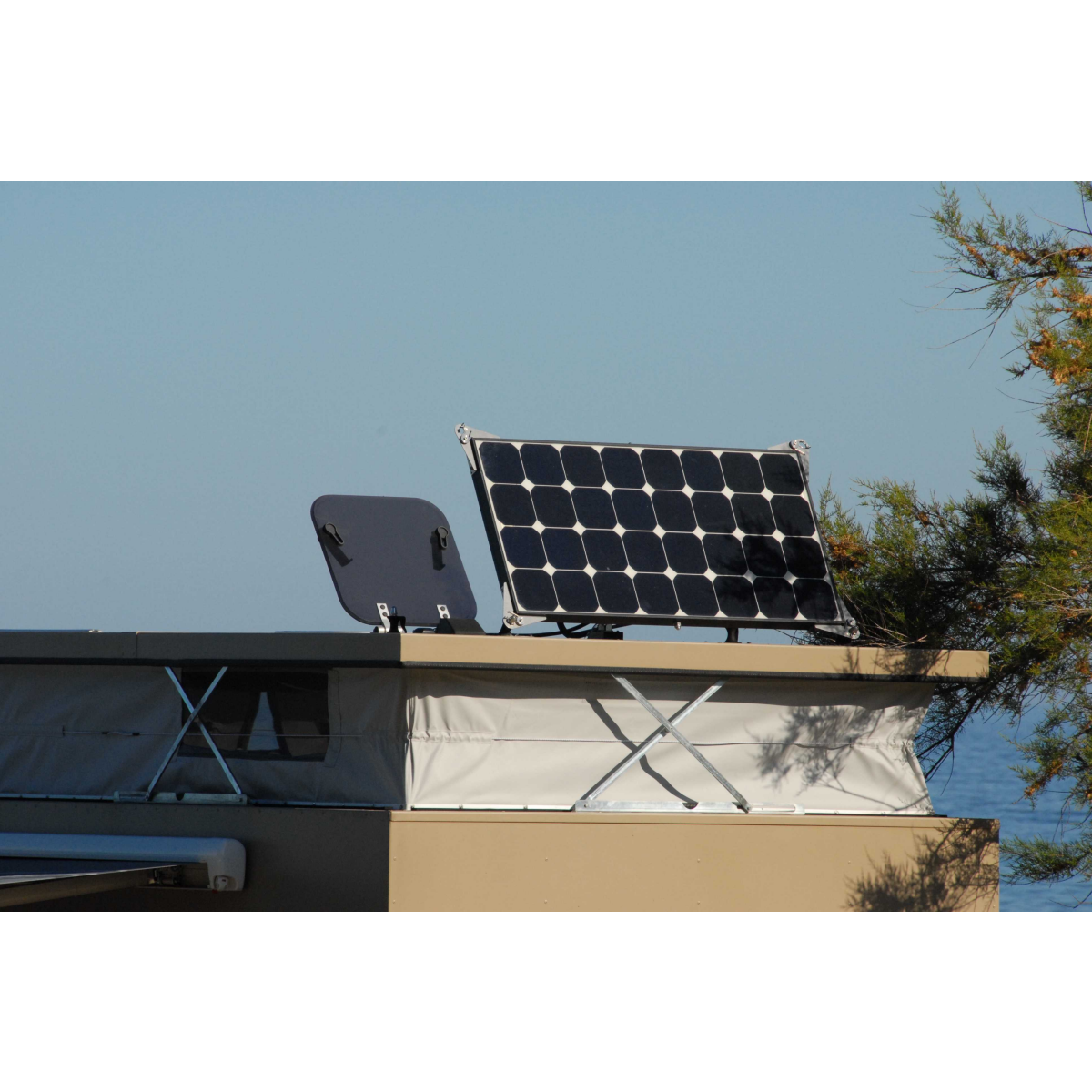

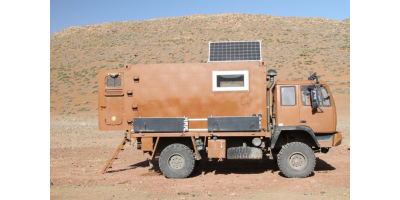

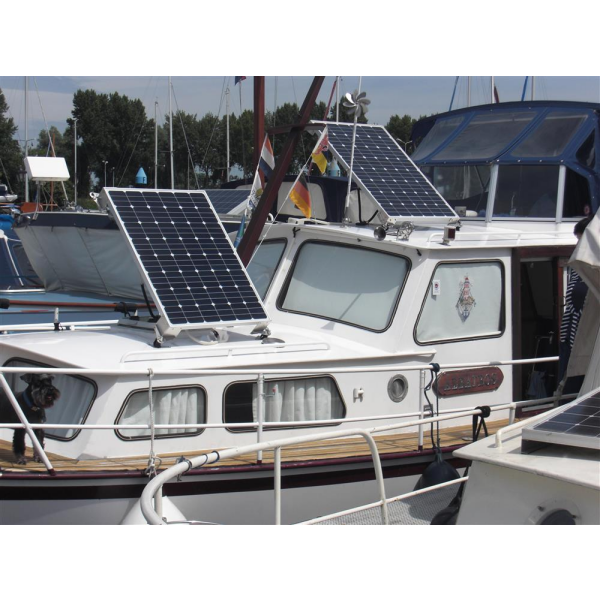

(pictures are from the version WITH the 4 base plates) - Solar panel mounting device for any car roof, also RV's, boats, trailers...

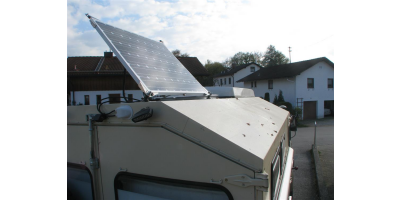

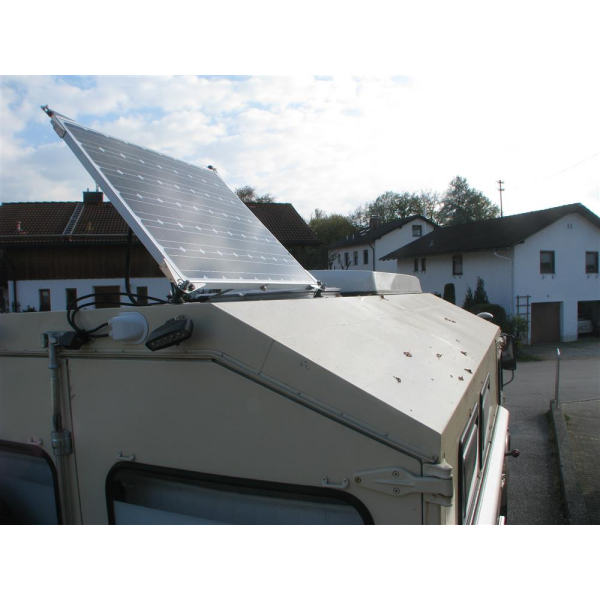

- panel is vented from the back for keeping the temperatures lower. Even better with tilted panel!
- easy taking off of the panel without tools (take care of securing with a cable or like)
- made of stainless steel and UV-resistant materials.
- rubber joints with stainless steel plates and M8 threads. Lifespan VERY long, not a single fault in 10 years.
- suitable for almost any size of panel, two versions available L and XL, up to 20kg no problem
- Version "standard" for panel length up to ca. 1,5m with a raising bow bent out of 1,5m material.

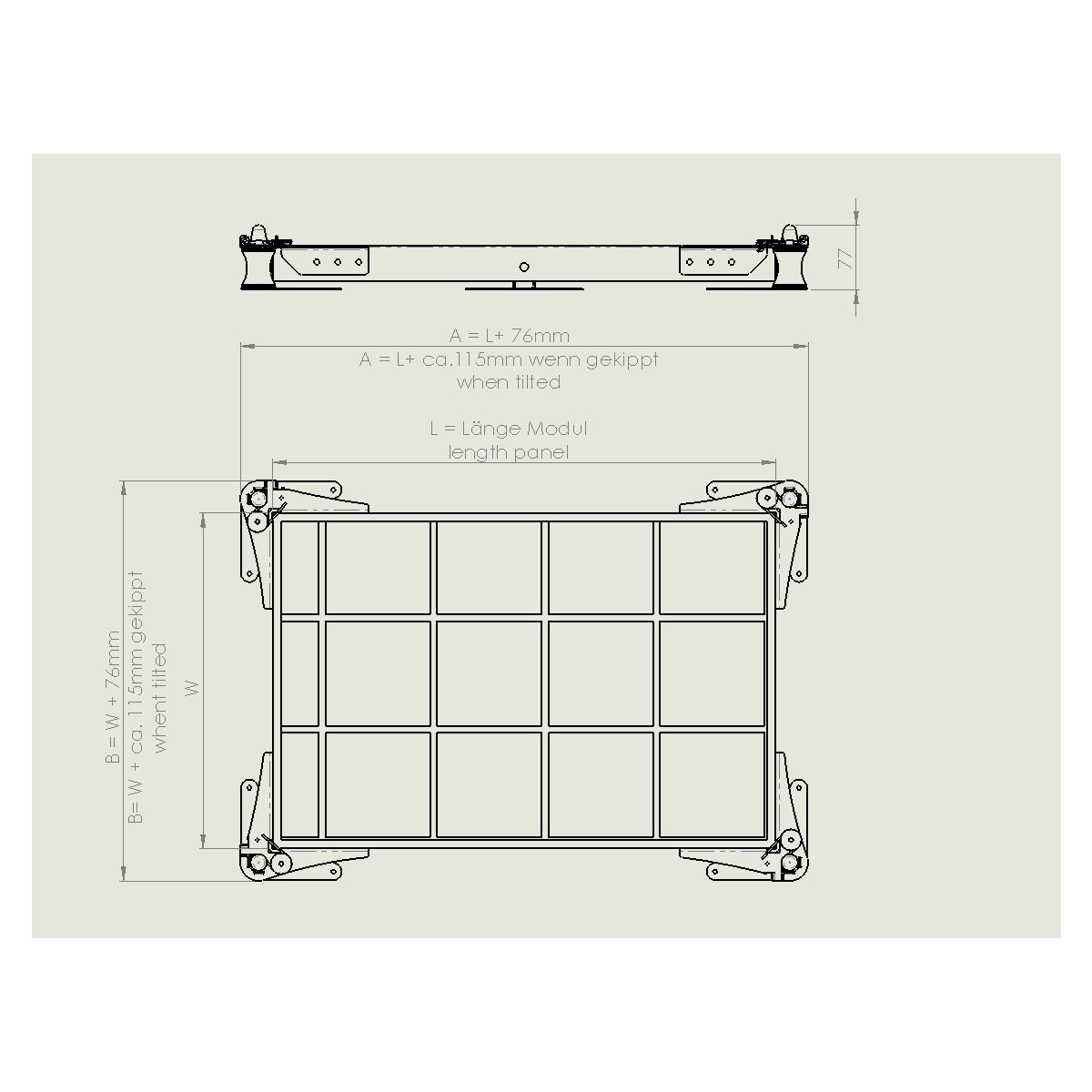

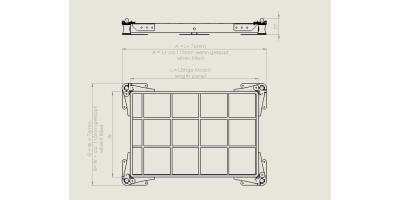

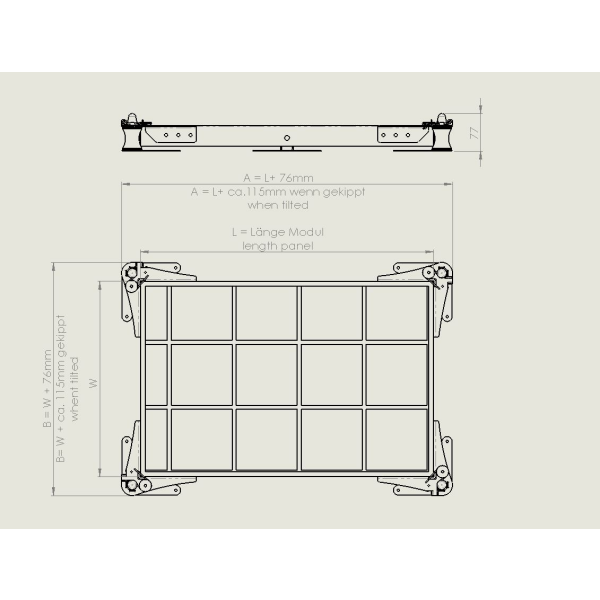

- Gesamthöhe 77mm, Gesamtbreite/-länge Modul + 76mm (beim Aufstellen braucht man pro Seite ca.60mm mehr vom Modul weg gemessen)
- height 77mm, width/length panel + 76mm, needs appr. 60mm on each side for tilting, measured from the panel
- glewing area of 1 foot: 73,7cm², center foot 103.5cm²
- Payload appr. 20kg. For exceeding panel weight I strongly recommend additional rubber buffers to support the panel frame when tilted.
- Safety notes: always make shure that all 4 brackets are locked before drifing.
- Never drive with tilted solar module.

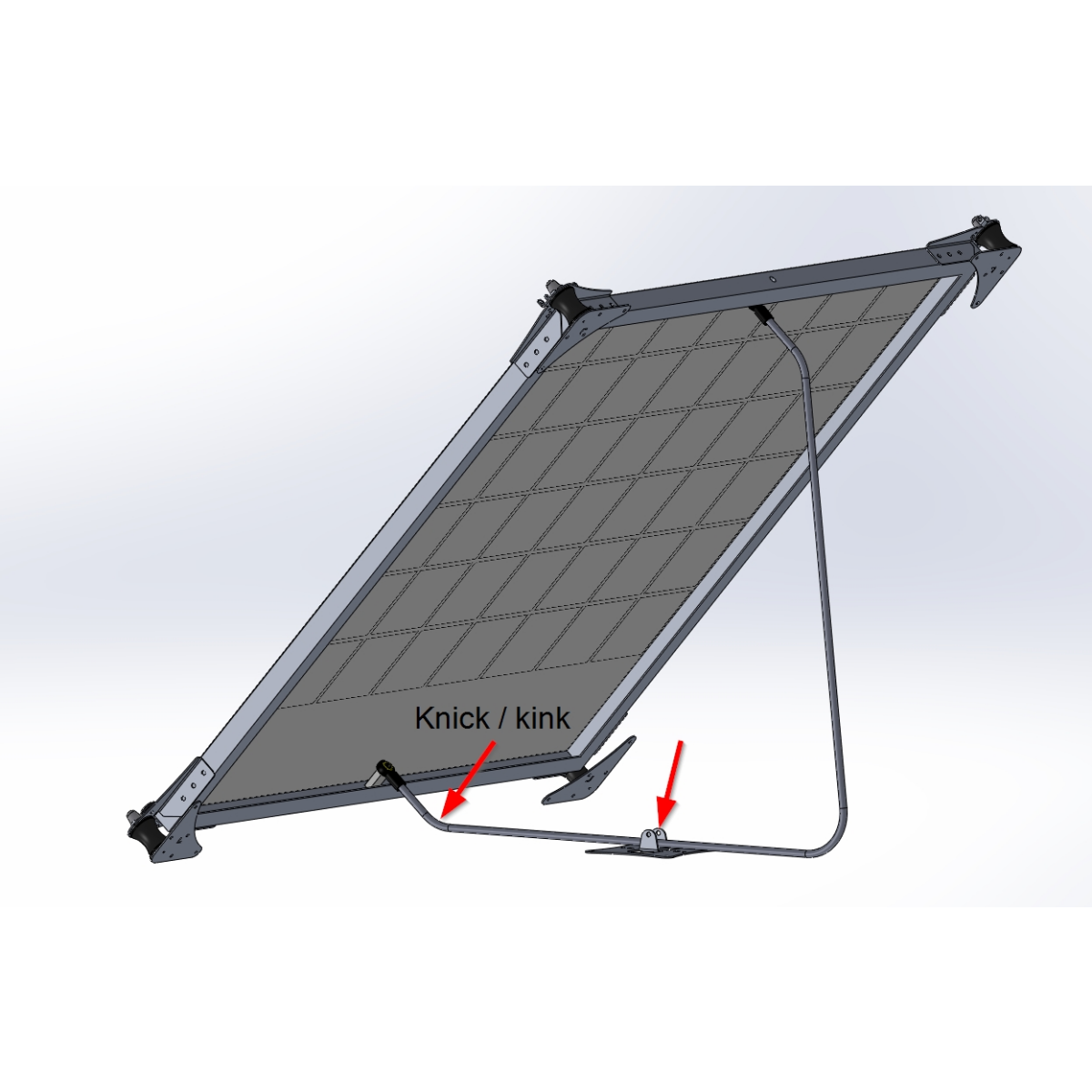

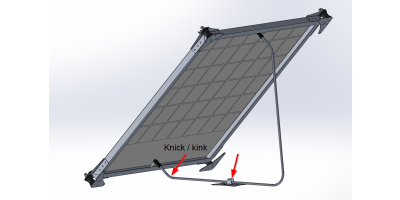

- when tilting, secure strut with the bolt at the bottom bracket.
