- Version "XL" for length over ca. 1,5m with a longer raising bow (2m material), max. weight 20kg .
- glewing area 73,7cm² per foot, middle plate 103.5cm²

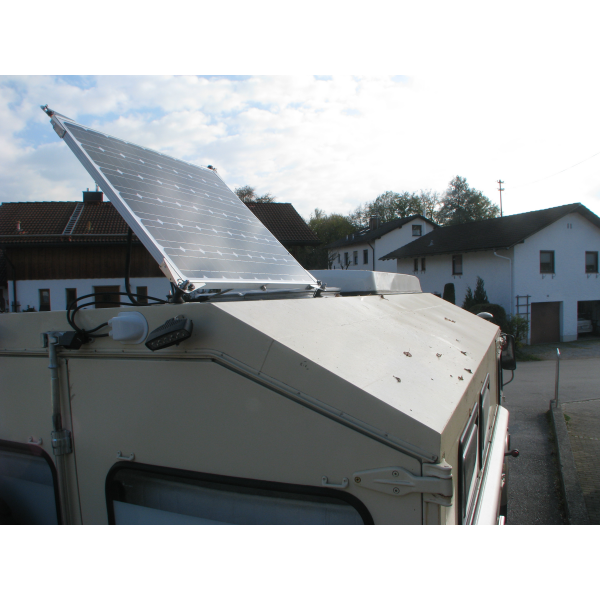

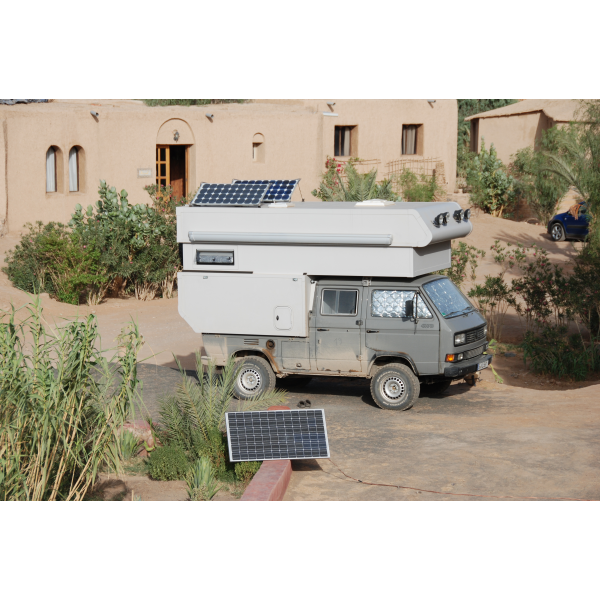

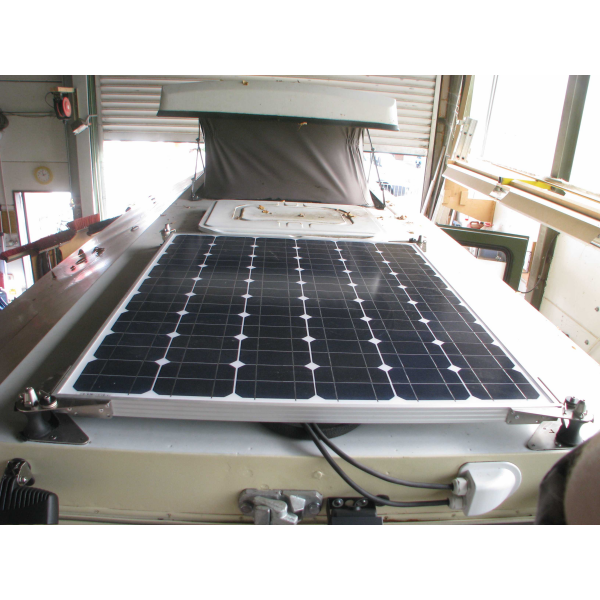

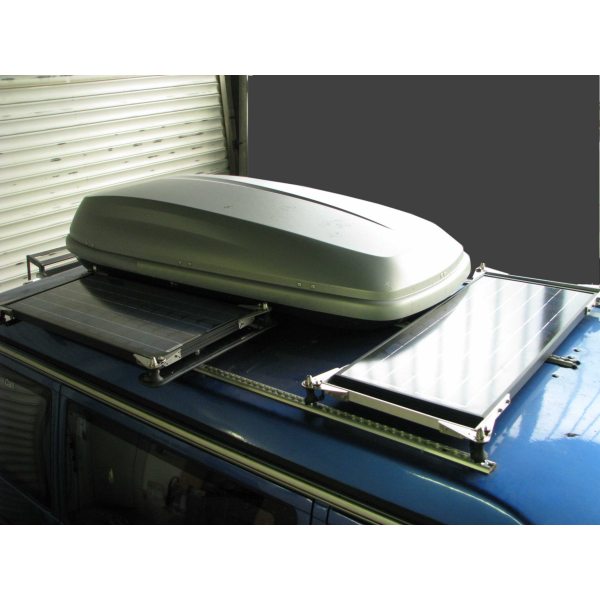

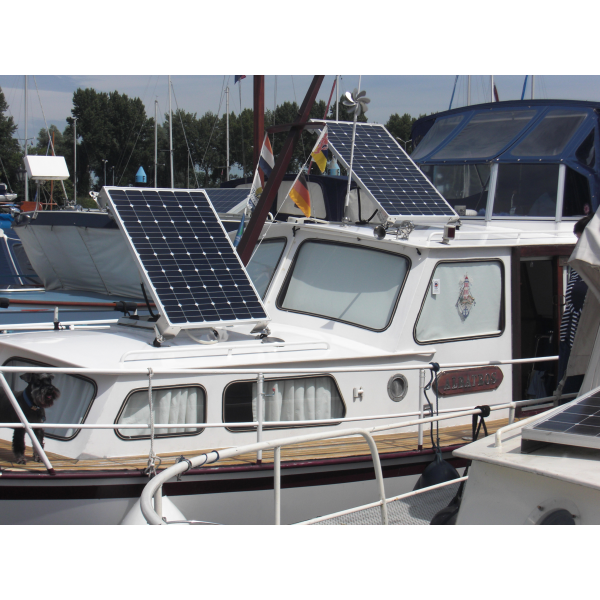

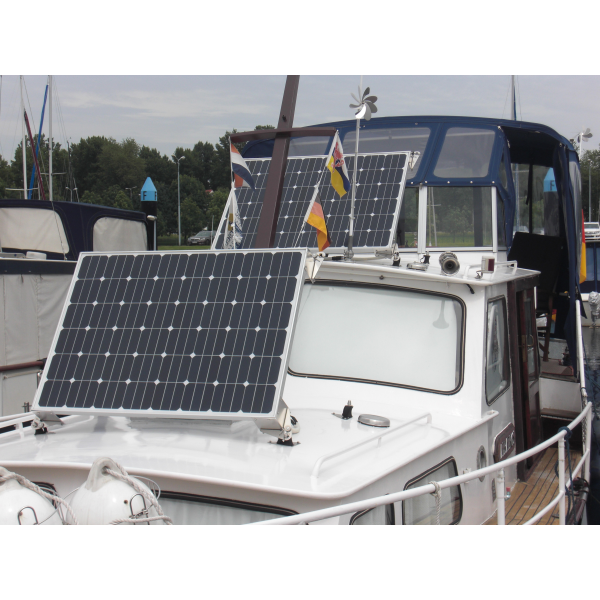

- Solar panel mounting device for any car roof, also RV's, boats, trailers...
- easy taking off of the panel without tools (take care of securing with a cable or like)
- made of stainless steel and UV-resistant materials.

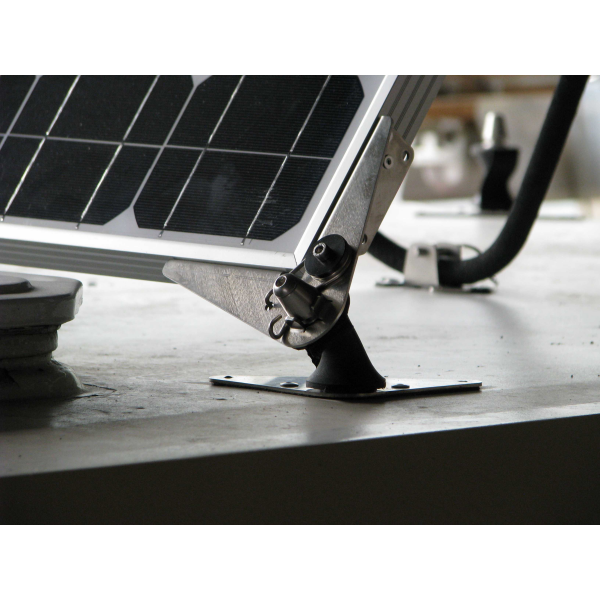

- rubber joints with stainless steel plates and M8 threads. Lifespan VERY long, not a single fault in 10 years.

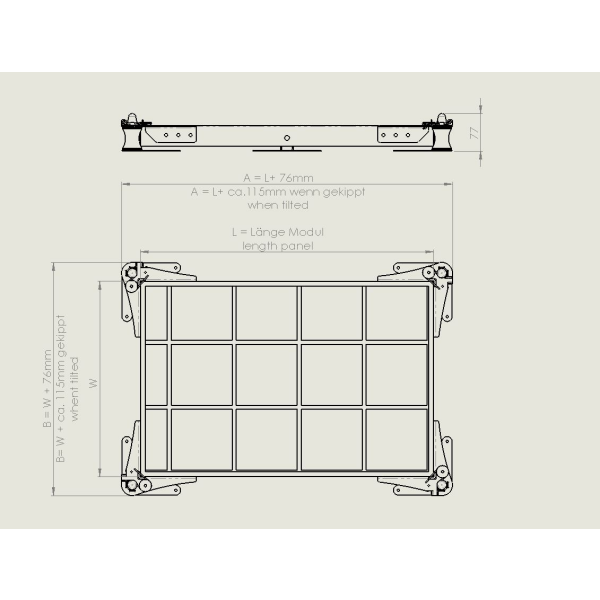

- suitable for almost any size of panel, two versions available L and XL, up to 20kg no problem

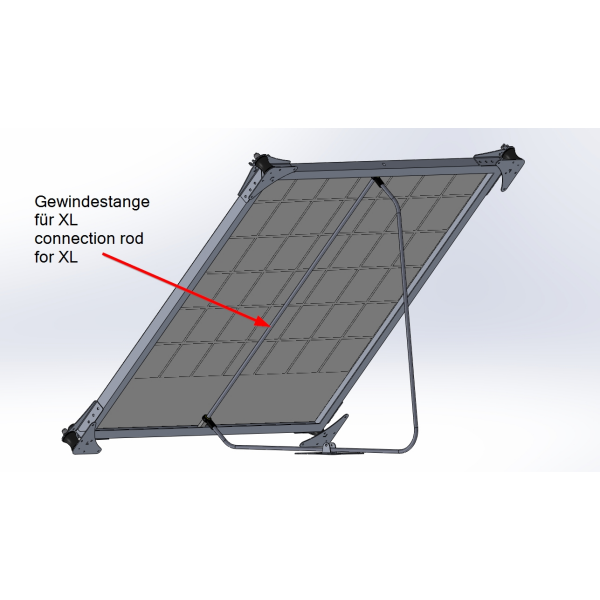

- XL come with an additional M10 thread pole to connect the hex bushes as a stabilizer instead of 2 single screws for the joints. Fixing of joint then with 2 nuts, add locking glew.
- Safety notation: product does not fulfil the regulations of accessories for use on vehicles (edge radius <2.5mm), so it can only be used in areas where humans are not endangered
- Safety notes: always make shure that all 4 brackets are locked before drifing.
- Never drive with tilted solar module.

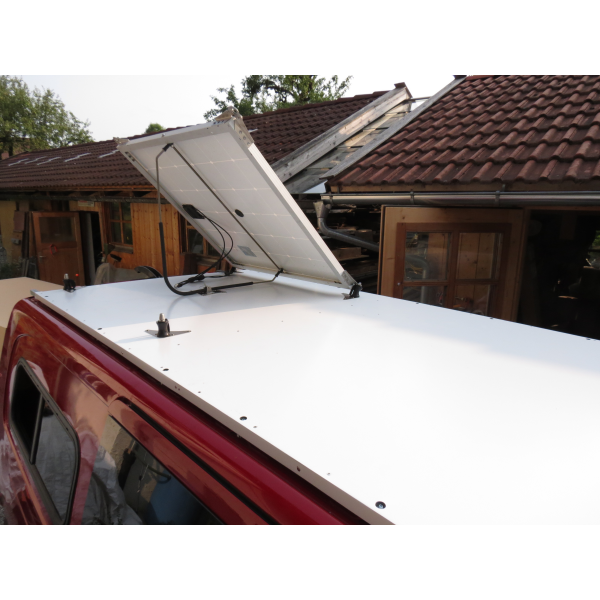

- when tilting, secure strut with the bolt at the bottom bracket.
PDF
Aufbauanleitung Solarmount

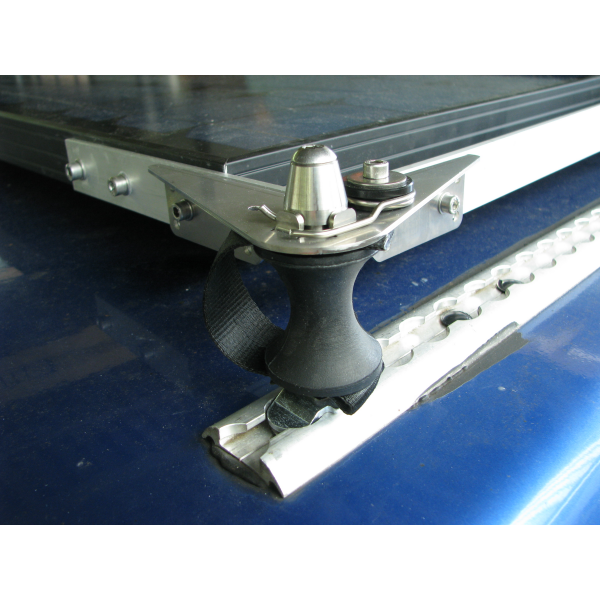

- 4 corner assemblies, ready to use with rubber hinge
- 1 center foot with bolt
- 1 strut prebended, needs to be adapted
- parts: all screws for panel, joints, nuts etc., selfadhesive rubber pad for strut
Manufacturer information:
Relleumdesign
