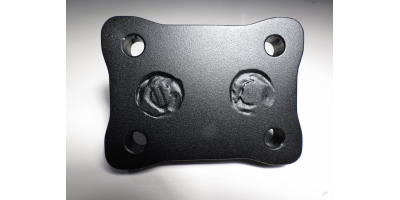

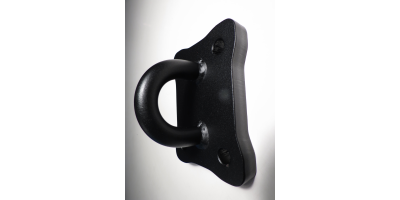

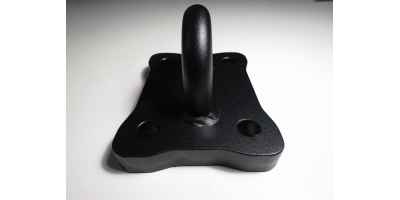

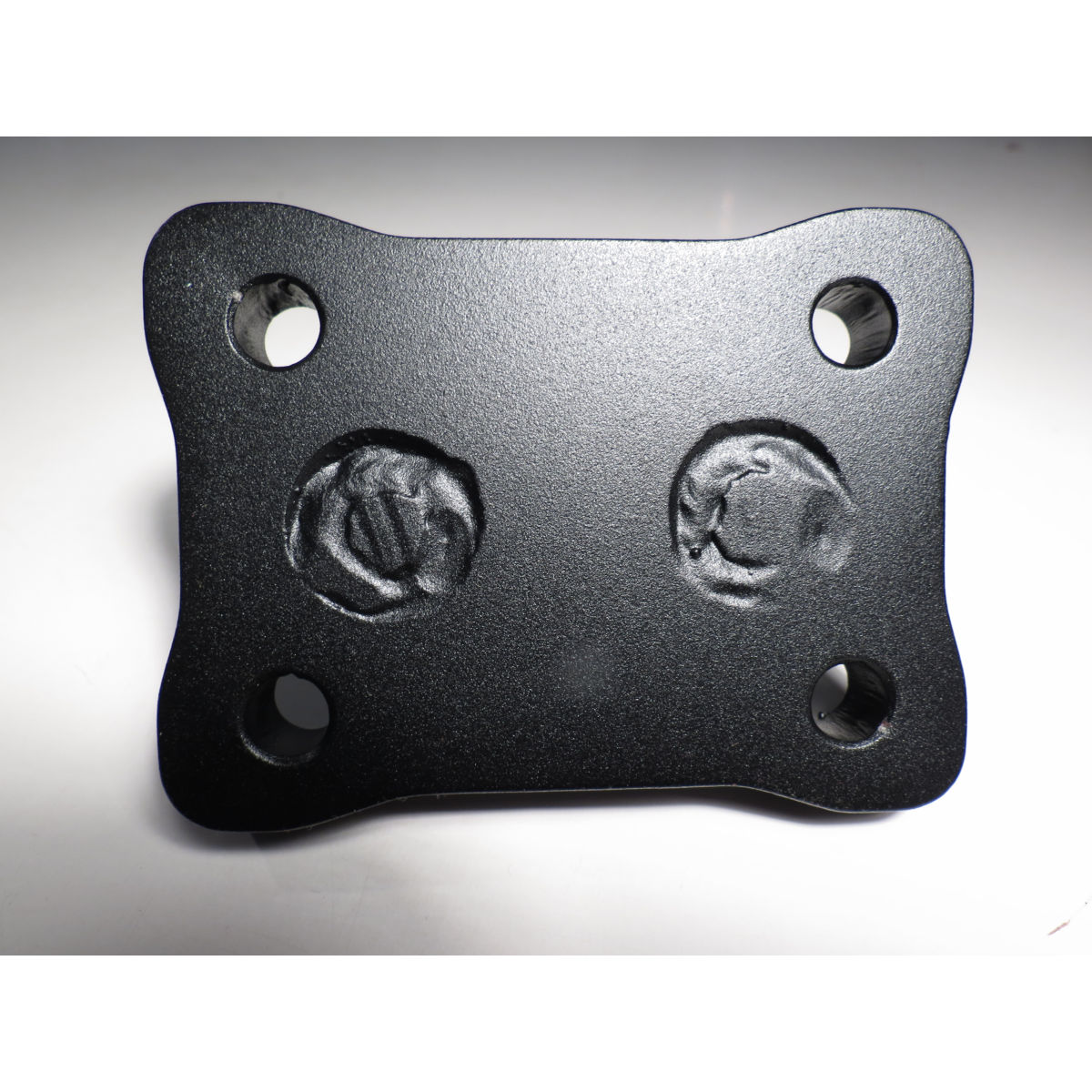

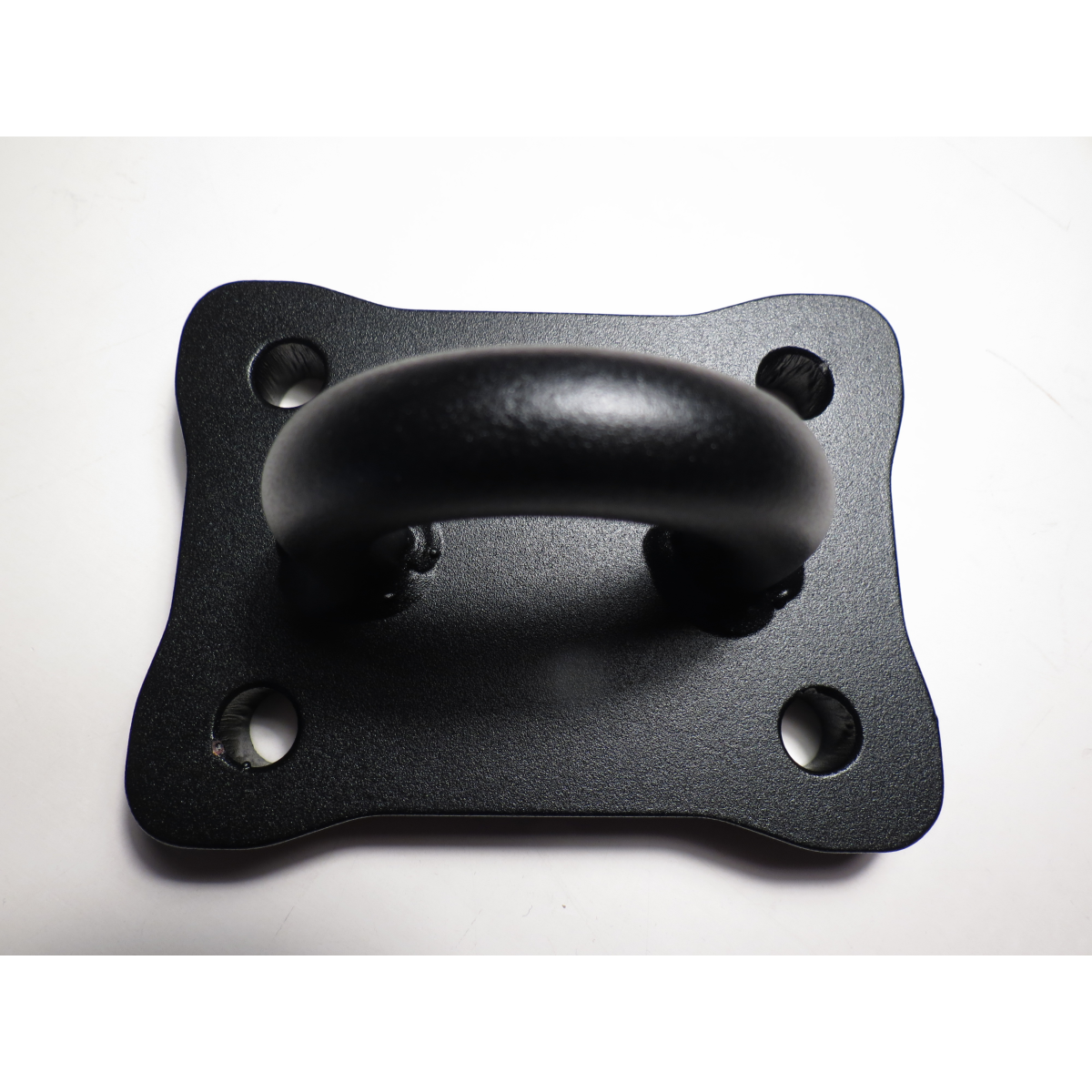

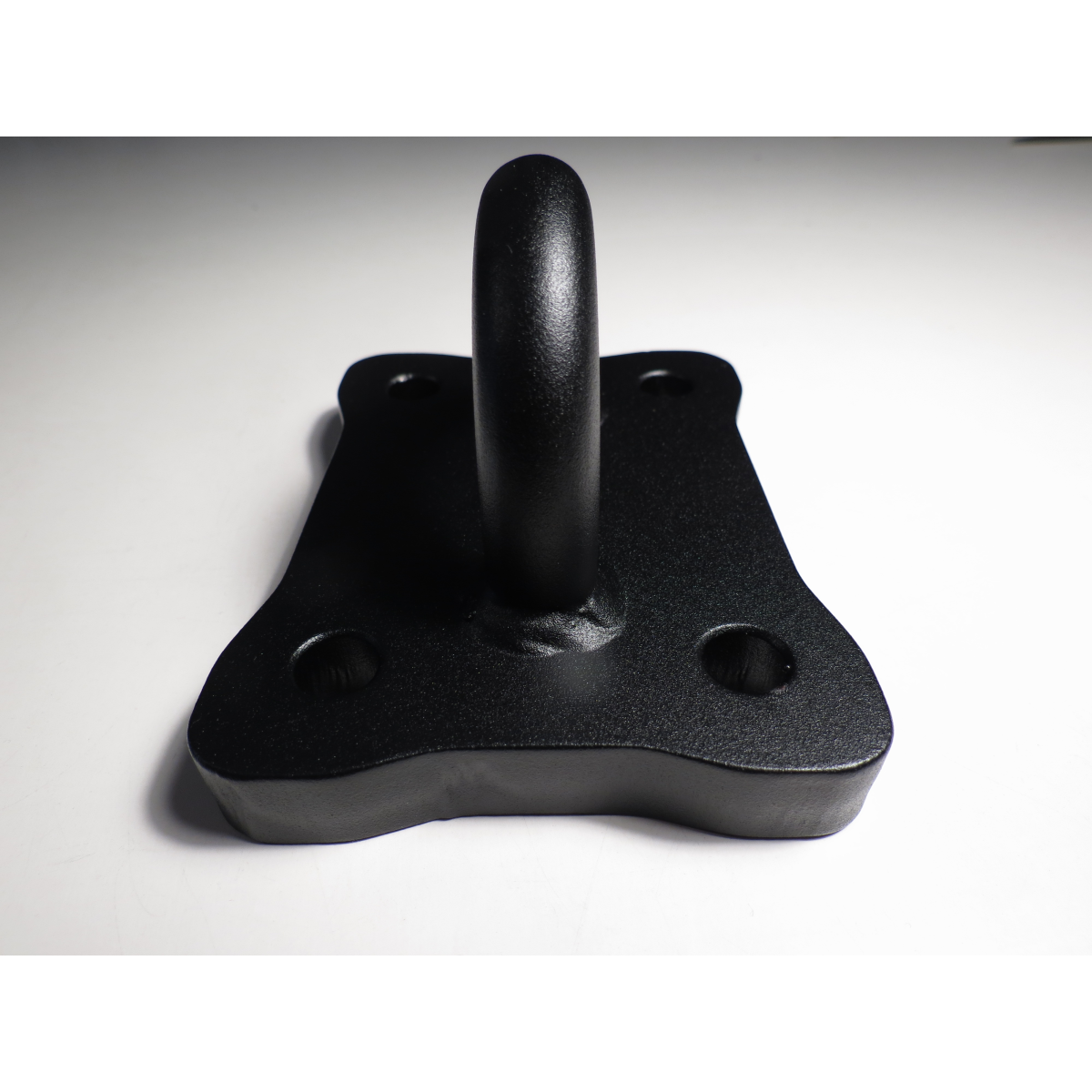

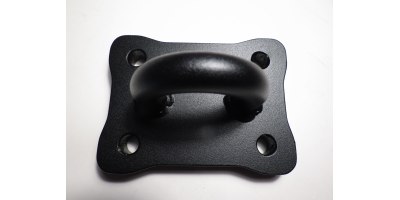

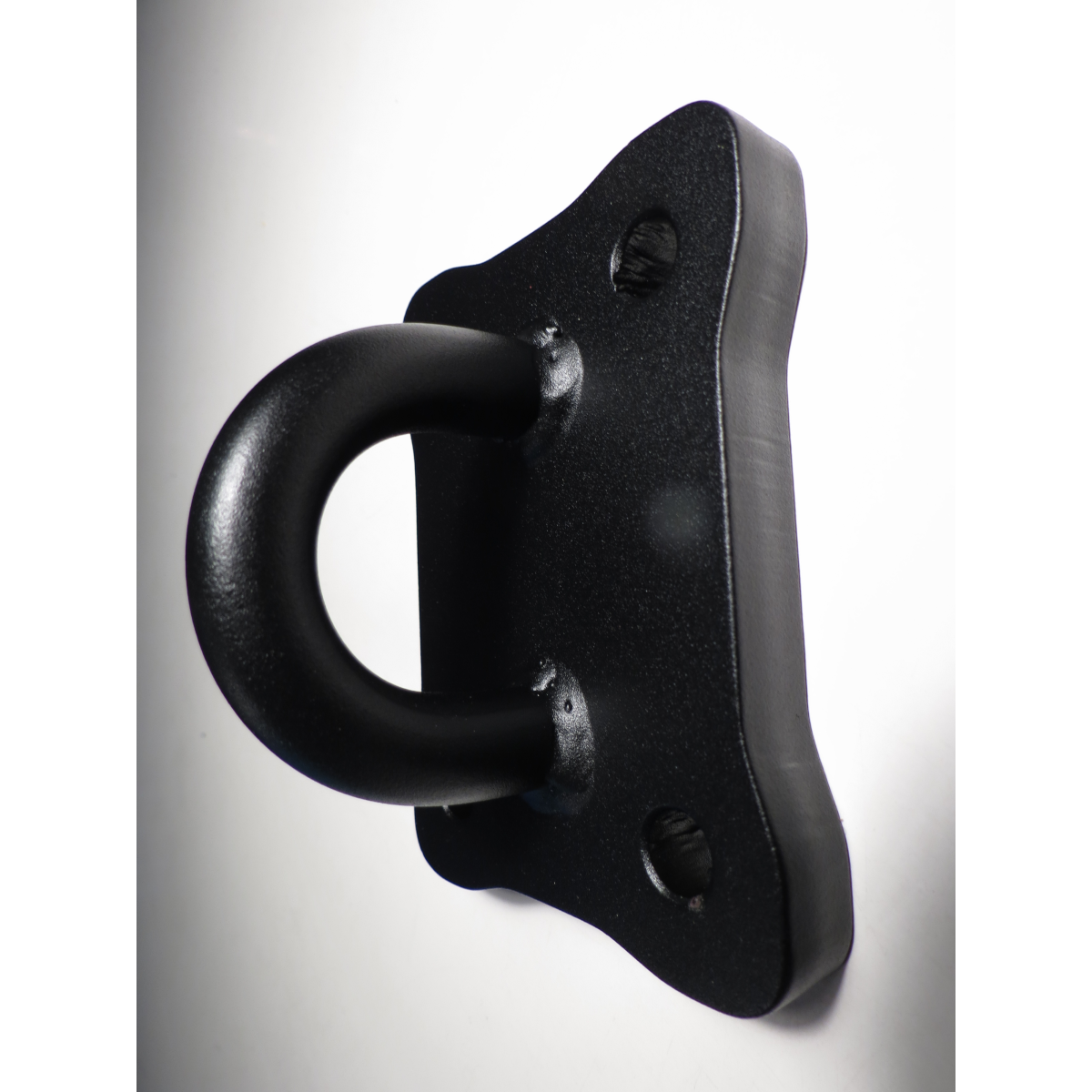

- plate with 15mm thickness, bracket 16mm round steel
- welded from both sides, back and front
- sand blasted, primed, powder coated for highest quality
- holes for screws M10 in strength 10.9 (not included!), can be drilled larger to 12.5mm

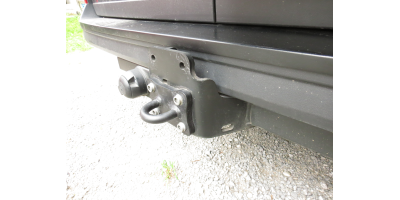

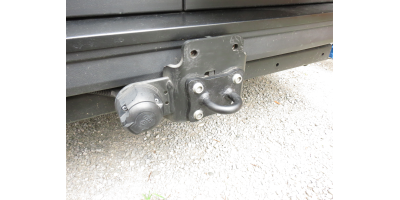

- no warranty of any kind for stability of two bar or connection to vehicle. Tow bars are generally not recommended for recovery use due to unknown structure strength
- use of soft or rope shackles is recommended
- for use with steel shackles, use bow and not bolt side
No warranty or compensation for accidents or injuries due to the unknown load circumstances in recovery situations.
Product does not fulfil any regulations for road safety in terms of edge radius.
The breaking strength is calculated for appr. 120kN with 4xM10 10.9 screws, with straight backward and smooth pulling.
| Item information | Value |
|---|---|
| Manufacturer: | Relleumdesign |
| SKU: | 1172 |
| Item weight: | 1,50 kg |
Manufacturer information:
Relleumdesign
