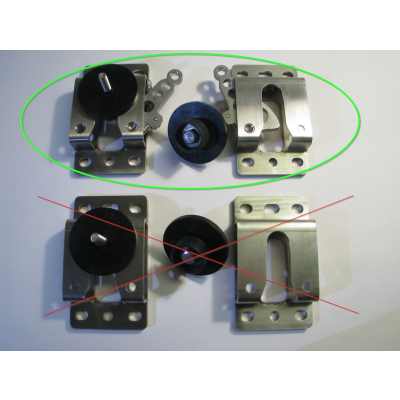

- to be combined with lockable bracket
- contains base bracket and fixing items for upper part, M8 screw neccessary
- screw pattern is 50x100mm plus two in the middle plus 2 hidden under coverplate, for M8
- for protected use like pickup area or inside cars
- for fridges, tool boxes, compressors etc.
- for fixing on air rails you need M8x12mm or M8x10mm inside the holder. One side center M8x12 countesink head.
- Safety notation: product does not fulfil the regulations of accessories for use on vehicles (edge radius <2.5mm), so it can only be used in areas where humans are not endangered
- Safety notation: products fixed with this item need to be secured with a second safe device like strap or lock.
| Item information | Value |
|---|---|
| Manufacturer: | Relleumdesign |
| SKU: | 1011 |
| Item weight: | 1,00 kg |
| material: | stainless steel 3mm |
| Designed by: | Relleumdesign |
| Manufacturer: | Relleumdesign |
| Load capacity WLL: | 80 |
| Condition of delivery: | assembled |

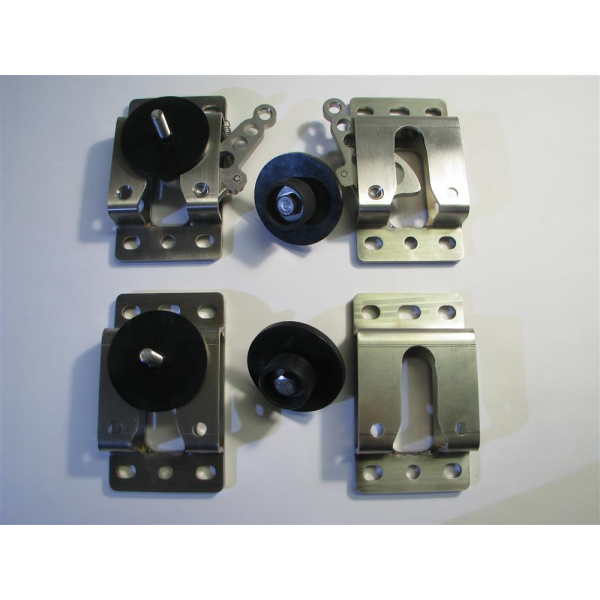

- 2 quick fix brackets

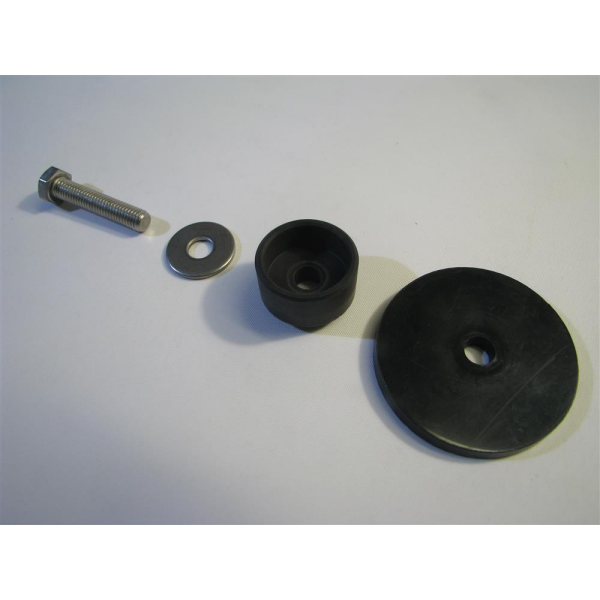

- 2 fixing bushes for load, PA30%GF
- 2 glide plates, POM D50h4mm
- 2 screws M8x40 hex, stainless steel
Manufacturer information:
Relleumdesign
